2025 Yamaha Outboards F20 hp
2025 Yamaha Outboards F20 hp
Location:Middle River, MD
or
Call 410.335.6200
Description

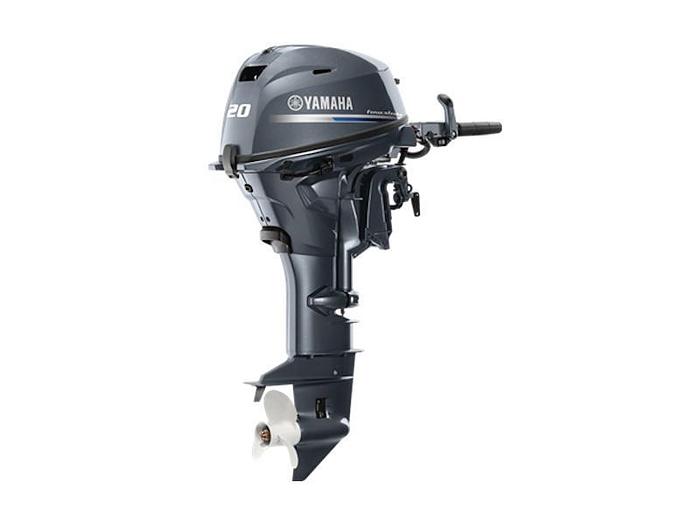

2019 Yamaha F20
For those who want power, performance and portability
The sun just broke the horizon, but your day began hours ago—the second you started your trusty Yamaha Portable. Maybe you’re skimming the marsh in a jon boat during duck season, pushing a sailboat ‘til the wind kicks up or hopping to the cuddy on a tender. Wherever the day takes you, these nimble, lightweight, efficient portables are up for the ride. Available in a range of horsepower from 20 all the way down to 2.5, these 1- or 2-cylinder dynamos provide big performance in streamlined designs.
Standard Features May Include:
SOHC
Large Displacement Engine
Streamlined Intake Manifold
Large Volume Air Silencer
Labyrinth Exhaust
Water-Cooled Fuel Pump
Acceleration Pump
Long Span Mounting System
Four Stroke Engine Design
Specifications
| Manufacturer | Yamaha Outboards |
| Model | F20 hp |
| Year | 2025 |
| Condition | New |
| Stock Number | 14F20 |
| Model Name | F20 hp |
| Trim Name | Base |
| Generic Type (Primary) | Four Stroke |
| Engine Type | 2 cyl |
| Engine Power | Prop Shaft: 20 hp @ 5500 rpm |
| Displacement | 432 cc |
| Bore | 2.554 in (65 mm) |
| Stroke | 2.558 in (65.1 mm) |
| Compression Ratio | 9.3:1 |
| Throttle | Full RPM Range: 5000 ~ 6000 rpm |
| Steering | Angle (maximum): 45° from center, either direction |
| Exhaust | Through Propeller |
| Ignition | CDI |
| Oil Type | Recommended: Yamalube® 4M (See owner's manual) |
| Lubrication | Wet Sump |
| Cooling | Recommended: Thermostatic Control |
| Gear Ratio (Primary) | 2.00:1 |
| Gear Shifter | Forward, Neutral, Reverse |
| Induction | EFI |
| Spark Plug | DPR6EB-9 |
| Starter | System: Electric & Manual |
| Alternator Output, Maximum | Output at W.O.T.: 16 amp |
| Fuel System | Ethanol Blend Limit: 10% Maximum |
| Fuel Type | Recommended: Octane 87 | Recommended Filtration: Yamaha 10-Micron Fuel/Water Separating Filter (external) |
| Dimensions | Degree of Tilt: 62° - 63° | Degree of Trim: -3° through +16° |
| Length | Shaft: 15" - 20" |
| Oil capacity | 1.1L/1.0L |
| Weight | 126 lbs (57 kg) - 146 lbs (66 kg) lbs |
| Features | Intake: 4 |
| Warranty | Limited 3-year Pleasure, 3-year Government, 1-Year Commercial |
| Status | Available |
